G105 Solar Road Stud | IP68 LED Road Marker Manufacturer - TIANHUA Traffic

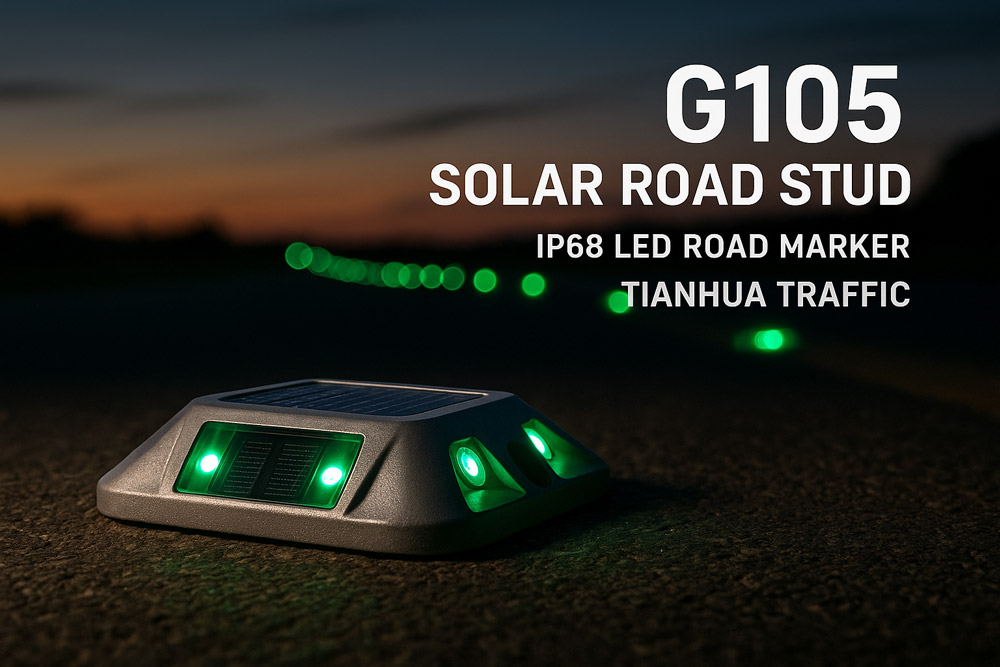

The G105 Solar Road Stud from TIANHUA Traffic is a high-performance LED road safety device designed for highways, city roads, parking lots, tunnels, bridges, and airport runways. It features a robust IP68 waterproof aluminum alloy body with high-luminance LEDs, providing excellent night visibility under all weather conditions.
Technical Specifications
- Model: G105
- Material: Cast Aluminum Alloy + Polycarbonate Lens
- Solar Panel: 2.5V / 0.2W Monocrystalline Silicon
- Battery: 1.2V / 800mAh Ni-MH or 3.2V / 500mAh LiFePO4 (optional)
- LED Color: White, Yellow, Red, Blue, Green (customizable)
- Visibility Distance: ≥ 800 meters
- Working Time: 120 hours after full charge
- Waterproof Grade: IP68
- Compression Resistance: ≥ 30 tons
- Operating Temperature: -20°C to +80°C
- Dimension: 125mm × 105mm × 25mm
- Weight: 0.6 kg / piece
Factory Price Range (2025)
- FOB China: USD 3.20 – 6.50 per piece (depending on LED color, battery type, and order quantity)
- CIF Southeast Asia: USD 4.80 – 8.20 per piece
- Sample Order: Free samples available for project testing
Key Features
- ✅ High Visibility: Up to 800m visibility under fog, rain, or night driving.
- ✅ IP68 Waterproof: Fully sealed for tropical or coastal environments.
- ✅ Durable Construction: Cast aluminum body with reflective PC lens for impact resistance.
- ✅ Energy-Efficient: Solar-powered with automatic charging and lighting.
- ✅ Easy Installation: Can be fixed using epoxy or screw mounting for long-term stability.
- ✅ Customizable Options: LED color, flashing mode, logo engraving, and packaging design.
Applications
The G105 Solar Road Stud is widely installed in:
- Highways and Expressways
- Airport Runways and Taxiways
- City Streets and Roundabouts
- Bridges, Tunnels, and Ports
- Parking Lots and Industrial Zones
Certifications
- CE Certification
- RoHS Compliance
- IP68 Waterproof Test Report
- ISO9001:2015 Quality Management System
Why Choose TIANHUA Traffic
- Factory-direct manufacturer with 15+ years of experience in solar and reflective road studs
- OEM & ODM service for global brands and project contractors
- Full road marking system supply: including paint, glass beads, and application machines
- Flexible payment policy: Ship now, pay after project completion
- Fast delivery: 10–15 days to Southeast Asia, Africa, or the Middle East
Cooperation and Distribution
TIANHUA Traffic welcomes cooperation with local distributors, government contractors, and construction companies. We offer long-term dealership opportunities, technical support, and marketing materials for joint development of road safety projects worldwide.
FAQ: G105 Solar Road Stud
Q1: What makes G105 different from other models?
The G105 features a reinforced aluminum structure and higher waterproof performance (IP68), suitable for heavy-duty highways and coastal areas.
Q2: How long is the battery lifespan?
Up to 3–5 years with LiFePO4 battery under normal operating conditions.
Q3: Can I order with my own brand or packaging?
Yes, OEM/ODM customization is available with laser logo or custom carton design.
Q4: Does TIANHUA Traffic export to my country?
We currently export to over 50 countries, including Malaysia, Thailand, Saudi Arabia, UAE, South Africa, and Chile.
Q5: Can solar studs work in cloudy or rainy regions?
Yes, our solar panels charge even under low sunlight and store power for up to 120 hours of illumination.
Conclusion
The G105 Solar Road Stud is a durable, efficient, and smart solution for modern traffic safety systems. With factory-direct pricing, certified quality, and global supply capability, TIANHUA Traffic ensures reliability, performance, and long-term partnership for every infrastructure project.
